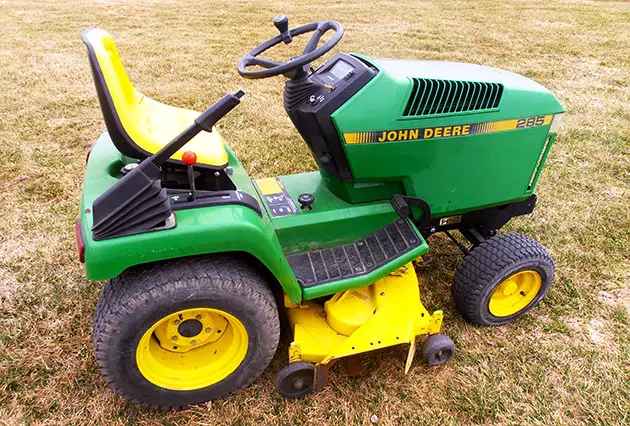

John Deere 285 garden tractor was power equipment that’s manufactured in Wisconsin, USA, from 1987 to 1992. It was a part of the John Deere’s 200 series. It features 4×2 two-wheel drive (2WD) chassis. The 285 was the larger version of the John Deere 265. After the production of this model was wrapped up in Wisconsin in 1992, the company started to introduce a newer, upgraded version, the John Deere 320 as its successor.
This model has a total weight of 625 lbs (283 kg). Its wheelbase is measured at 48 inches (1210 mm), with length of 71.5 inches (1810 mm) and a turning radius of 2.1 ft (600 mm).
The John Deere 285 garden tractor is equipped with Kawasaki FD590V engine, which is a V-twin 4-stroke gasoline fueled engine. It is capable of yielding 18 horsepower (13.4 kW) output power @ 3600 rpm, as well as 30.63 feet pounds (41.5 Nm or 4.23 kg/m) torque @ 2600 rpm. The cylinder bore is measured at 29.1 inches (74 mm) and the piston stroke of 2.68 inches (68 mm), allows the motor to put out 585 ml of displacement. The compression ratio is rated at 8.7:1.
John Deere 285 garden tractor comes with a hydrostatic transmission, with infinite front and reverse gear. It features an internal expanding brake, manual steering, and electric starter. This model provides an open operator station (OOS) platform. Moreover, the fuel tank capacity is capable of loading 3 gallons (11.4 L gasoline).
There are several attachments that are available for this specific model of power equipment. First is the 46 inches (1160 mm) mid-mounted mower deck, with manual lift and three blades, that’s capable of cutting 1.5 – 4 inches (25 – 102 mm) of height. Second is the 50 inches (1270 mm) mid-mounted mower deck with manual lift and three blades, that’s capable of cutting 5 – 4 inches (25 – 102 mm) of height. Other attachments are the 46 inches (1160 mm) front-mounted blade with manual lift and 42 inches (1060 mm) front-mounted snow blower with manual lift and clearing width.
The John Deere 285 garden tractor requires regular maintenance, which should be performed once every roughly 50 hours. The maintenance includes oil filter, air filter, and spark plug replacements, along with mower blades replacement or sharpening.
You can read more below to discover John Deere 285 garden tractor specifications, features, price, serial numbers, and other information.
John Deere 285 Price
- John Deere 285 Original Price: $2,300 USD
Related Post
- John Deere 210
- John Deere 314
- John Deere 3032E
- John Deere D125
- John Deere L111
- John Deere LA130
- John Deere LT133
- John Deere LT155
- John Deere LT166
- John Deere LX277
John Deere 285 Serial Numbers
| 1988 | M00285A475001 (46″ mower) |
| 1989 | M00285A595001 (46″ mower) |
| 1990 | M00285A010001 (46″ mower) |
| 1988 | M00285B475001 (50″ mower) |
| 1989 | M00285B605001 (50″ mower) |
| 1990 | M00285B020001 (50″ mower) |
| 1991 | M00285B100001 (50″ mower) |
| 1989 | M00285C615001 (50″ mower + fuel injection) |
| 1991 | M00285A100001 (48″ mower) |
John Deere 285 Specification
| JOHN DEERE 285 ENGINE | |
| Engine | Kawasaki FD590V gasoline 2-cylinder liquid-cooled |
| Displacement | 585 cc 35.7 ci |
| Bore/Stroke | 2.91×2.68 inches 74 x 68 mm |
| Power (gross) | 18 hp 13.4 kW |
| Air cleaner | foam precleaner with paper filter |
| Compression | 8.7:1 |
| Rated RPM | 3400 |
| Idle RPM | 1400-3350 |
| Starter volts | 12 |
| Oil capacity | 2.6 qts 2.5 L |
| Coolant capacity | 3.3 qts 3.1 L |
| JOHN DEERE 285 MECHANICAL | |
| Chassis | 4×2 2WD |
| Steering | manual enclosed recirculating ball |
| Brakes | expanding mechanical shoe |
| Cab | Open operator station. Vinyl weather enclosure optional. |
| Transmission | hydrostatic |
| JOHN DEERE 285 TRANSMISSION | |
| Transmission | Sundstrand BDU-21 |
| Type | hydrostatic |
| Gears | infinite forward and reverse |
| Oil capacity | 2.6 qts 2.5 L |
| Oil type | Low-Viscosity Hy-Gard |
| JOHN DEERE 285 DIMENSIONS | |
| Wheelbase | 47.9 inches 121 cm |
| Length | 71.5 inches 181 cm |
| Width | 41.5 inches 105 cm |
| Height | 43.6 inches 110 cm |
| Shipping | 625 lbs 283 kg |
| JOHN DEERE 285 TIRES | |
| Ag rear | 23×10.50-12 |
| Lawn/turf front | 16×6.50-8 |
| Lawn/turf rear | 23×10.50-12 |
| JOHN DEERE 285 BATTERY | |
| Number | 1 |
| Cold-cranking amps | 341 |
| Volts | 12 |
| Group | 22F |
| JOHN DEERE 285 ELECTRICAL | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 17 |
John Deere 285 Attachments
| 46″ MOWER DECK | |
| Type | mid-mount John Deere |
| 3-blade with manual lift | |
| Cutting width | 46 inches 116 cm |
| Weight | 125 lbs 56 kg |
| Overall width | 57 inches 144 cm |
| Cut height | 1.5 to 4 inch 3 to 10 cm |
| 50″ MOWER DECK | |
| Type | mid-mount John Deere |
| 3-blade with manual lift | |
| Cutting width | 50 inches 127 cm |
| Weight | 155 lbs 70 kg |
| Overall width | 61 inches 154 cm |
| Cut height | 1.5 to 4 inch 3 to 10 cm |
| BLADE | |
| Type | front-mount John Deere |
| Width | 46 inches 116 cm |
| Height | 17 inches 43 cm |
| Lift height | 5 inches 12 cm |
| Cut depth | 3 inches 7 cm |
| Weight | 110 lbs 49 kg |
| Lift | manual |
| Angle | manual |
| 42″ SNOW BLOWER | |
| Type | front-mount John Deere |
| single-stage with manual lift | |
| Clearing width | 42 inches 106 cm |
| Clearing height | 17 inches 43 cm |
| Weight | 175 lbs 79 kg |
| Overall width | 43 inches 109 cm |
John Deere 285 Review Video
Related Post
- John Deere LX280
- John Deere 212
- John Deere 300
- John Deere 316
- John Deere 325
- John Deere 420
- John Deere 455
- John Deere 650
- John Deere 790
Conclusion
First appearing in the 80s, John Deere 285 garden tractor is still a popular and beloved model to these days. You may use the brief guide above to know and learn better about this particular power equipment unit.
