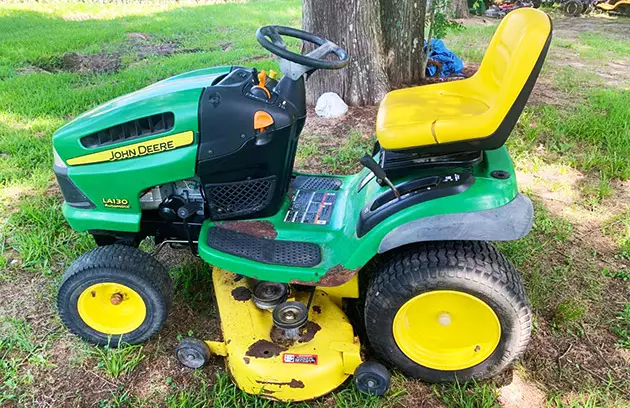

John Deere LA130 Lawn Tractor – John Deere LA130 Lawn Tractor is a compact lawn tractor manufactured by John Deere for rural homes with small and medium-sized lawns. The engine that is used for the lawn tractor is the gasoline engine from Briggs & Stratton. At a maximum operating condition of 3600 RPM, the engine can produce up to 21 hp or about 15.7 kW of power. The engine itself is a 2-cylinder engine with an air-cooling system.

On the technical side for the John Deere LA130 Lawn Tractor, the Briggs & Stratton engine has a displacement capacity of around 724cc for the 2-cylinder design. The chassis is the regular 4×2 2WD chassis and the transmission system uses the hydrostatic transmission with a belt-driven mechanism. The oil capacity is around 1.9 L. Gears are available for infinite forward and reverse movement. All in all, the weight of the vehicle is around 524lbs without using any attachments.

Speaking of attachments for the John Deere LA130 Lawn Tractor, the owner will be able to install additional mower decks with various sizes of the blade. A 48-inches mower deck is included in the package with a 3-blade system that uses a manual lift to alter the height of the deck according to the ground level. This is to make it easier for the operator to use the vehicle to clean up lawns with rough terrains.

Therefore, you can easily use this article to find more about the John Deere LA130 Lawn Tractor, including the current price, spare parts, key specifications, user reviews, serial numbers, and images. You can use these aspects to compare the vehicle regarding the features that it offered with other products produced by John Deere or other manufacturers. This will ensure that you only get the best tractor for your needs.

Deere & Company is the manufacturer of equipment produced with the John Deere brand. With the slogan that says “Nothing Runs Like A Deere”, this company is one of the most popular brands for outdoor equipment and various types of tractors. They are also one of the main producers of diesel engines and drivetrains in the United States. Various subsidiaries are also managed under the John Deere brand, including Blue River technology, Navcom Technology, John Deere Financial, Bear Flag Robotics, and others.

Contents hide

1 John Deere LA130 Price

2 John Deere LA130 Serial Number

3 John Deere LA130 Specification

4 John Deere LA130 Attachments

5 John Deere LA130 Review Video

6 Conclusion

John Deere LA130 Price

John Deere LA130 Original Price: $1,999 (2007)

Related Post

John Deere LA130 Serial Number

Location	Serial number decal under the rear fender on the left side of the tractor.
2007	010001

John Deere LA130 Specification

JOHN DEERE LA130 ENGINE
Engine	Briggs & Stratton gasoline 2-cylinder air-cooled
Displacement	724 cc 44.2 ci
Bore/Stroke	2.97×2.89 inches 75 x 73 mm
Power	21 hp 15.7 kW
Air cleaner	paper and foam elements
Rated RPM	3600
Starter volts	12
Oil capacity	2 qts 1.9 L
Sparkplug gap	0.030 inches 0.762 mm
JOHN DEERE LA130 MECHANICAL
Chassis	4×2 2WD
Steering	manual
Cab	Open operator station.
JOHN DEERE LA130 TRANSMISSION
Transmission	Tuff Torq K46
Type	belt-driven hydrostatic
Gears	infinite forward and reverse
Oil change	sealed unit, service not recommended
JOHN DEERE LA130 PTO
Mid PTO	independent
Clutch	electric
JOHN DEERE LA130 DIMENSIONS
Wheelbase	48.9 inches 124 cm
Length	69.25 inches 175 cm
Width	60 inches 152 cm
Height	45 inches 114 cm
Weight	524 lbs 237 kg
JOHN DEERE LA130 TIRES
Lawn/turf front	16×6.5-8
Lawn/turf rear	22×9.5-12
JOHN DEERE LA130 ELECTRICAL
Ground	negative
Charging amps	9
Battery volts	12

John Deere LA130 Attachments

48″ MOWER DECK
Type	mid-mount John Deere
	3-blade with manual lift
Cutting width	48 inches 121 cm

John Deere LA130 Review Video

Related Post

Conclusion

We do hope that this article regarding the key features and meet specifications of the John Deere LA130 Lawn Tractor can be of use for you. You can also check out other articles about similar products to compare the features offered by each tractor.
