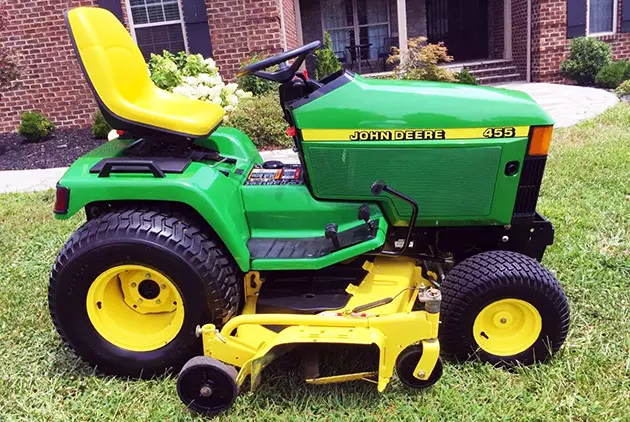

John Deere 455 Garden Tractor may not be manufactured anymore, but its specifications are worth seeing as a reference if you want to purchase a lawn tractor for any purpose with your garden. Discontinued in 2001, this tractor offers you various features that many others don’t have. Without further ado, let’s get to know with this John Deere’s tractor specification!
First of all, let’s talk about the tractor’s engine. This John Deere 455 Garden Tractor is powered with Yanmar 3-cylinder diesel, which has 881 cc displacements that expected to produce 22 HP. That can be also said that the engine is expected to produce 16.4 kW. It works on 3,350 rated RPM and mainly works on diesel.
Completing its structure, the fuel tank can be filled full up to 6.5 gallons—which is equal to 24.6 L. With such number, you can expect to do many jobs as possible with this John Deere Garden Tractor.
Talking about its mechanical aspect, this tractor has 4×2 2WD as its chassis. It uses hydrostatic power steering type with additional four-wheel steering system that can be activated if you like. This tractor has an open operator station—which simply means that it doesn’t have cab whatsoever.
John Deere 455 Garden Tractor has Tuff Torq K91 shaft-driven hydrostatic as its transmission type with infinite reverse and forward transmission gears. With such feature, you can achieve maximum forward speed at 8.5 miles per hour (equal to 13.7 km per hour), and maximum reverse speed at 4.3 mph (equal to 6.8 km per hour).
As for the attachment, there are various decks that you can expect to mount on your John Deere 455 Garden Tractor. First, you should know that there are three kinds of attachments, which are the snowblower, front-end-loader, and blade. Its sizes are also different, ranging from 48”, 54”, and 60”. Therefore, if you want to purchase this item, it is important to understand which attachment you are going to use.
What about the price? This John Deere 455 Garden Tractor—which was discontinued in 2001—was priced $10,995 in 1995. That said, there can be pretty high discrepancies regarding the price with the current market.
Since the price can be ‘demanding’, it is compulsory to learn about the product well before you are going to purchase the item.
John Deere 455 Price
- John Deere 455 Original Price: $3,200
Related Post
- John Deere 210
- John Deere 314
- John Deere 3032E
- John Deere D125
- John Deere L111
- John Deere LA130
- John Deere LT133
- John Deere LT155
- John Deere LT166
- John Deere LX277
John Deere 455 Serial Number
| 1993 | 010001 |
| 1994 | 020001 |
| 1995 | 030001 |
| 1996 | 040001 |
| 1997 | 050001 |
| 1998 | 060001 |
| 1999 | 070001 |
| 2000 | 080001 |
| 2001 | 090001 |
John Deere 455 Specification
| JOHN DEERE 455 ENGINE | |
| Engine | Yanmar 3TNA72UJ3 diesel 3-cylinder liquid-cooled horizontal-shaft OHV |
| Displacement | 881 cc 53.8 ci |
| Bore/Stroke | 2.83×2.83 inches 72 x 72 mm |
| Power | 22 hp 16.4 kW |
| Fuel system | electric indirect injection |
| Air cleaner | dry type |
| Pre-heating | glow plugs |
| Compression | 21.6:1 |
| Rated RPM | 3350 |
| Starter volts | 12 |
| Coolant capacity | 3 qts 2.8 L |
| JOHN DEERE 455 MECHANICAL | |
| Chassis | 4×2 2WD |
| Differential lock | standard |
| Steering | hydrostatic power |
| four-wheel steering Opt | |
| Brakes | wet disc |
| Cab | Open operator station. |
| JOHN DEERE 455 TRANSMISSION | |
| Transmission | Tuff Torq K91 |
| Type | shaft-driven hydrostatic |
| Gears | infinite forward and reverse |
| 2WS Oil capacity | 7 qts 6.6 L |
| AWS Oil capacity | 6 qts 5.7 L |
| Oil type | John Deere Low Viscosity HY-GARD J20D |
| JOHN DEERE 455 HYDRAULICS | |
| Type | Gorotor |
| Pressure | 1000 psi 69.0 bar |
| Valves | 2 |
| Pump flow | 4.65 gpm 17.6 lpm |
| JOHN DEERE 455 PTO | |
| Rear PTO | independent * |
| Clutch | electric |
| Rear RPM | 540 (1.375) |
| Mid PTO | independent |
| Clutch | electric |
| Mid RPM | 2000 |
| JOHN DEERE 455 DIMENSIONS | |
| 2WS Wheelbase | 50.4 inches 128 cm |
| AWS Wheelbase | 49.4 inches 125 cm |
| Length | 75 inches 190 cm |
| Width | 48 inches 121 cm |
| Height | 51.2 inches 130 cm |
| 2WS Weight | 965 lbs 437 kg |
| AWS Weight | 1060 lbs 480 kg |
| JOHN DEERE 455 TIRES | |
| Lawn/turf front | 18×8.50-8 |
| Lawn/turf rear | 26×12.00-12 |
| Lawn/turf front | 16×6.50-8 |
| 16×7.50-8 | |
| Lawn/turf rear | 23×8.50-12 |
| 23×10.50-12 | |
| JOHN DEERE 455 ELECTRICAL | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 20 |
| Battery CCA | 470 |
| Battery volts | 12 |
John Deere 455 Attachments
| 48″ mid-mount mower deck | |
| 54″ mid-mount mower deck | |
| 60″ mid-mount mower deck | |
| Snowblower | |
| Blade | |
| Front-end loader | |
| JOHN DEERE 40 LOADER | |
| Loader weight | 580 lbs 263 kg |
| Height (to pin) | 70 inches 177 cm |
| Clearance, dumped bucket | 53 inches 134 cm |
| Dump reach | 22 inches 55 cm |
| Dump angle | 50° |
| Reach at ground | 42.5 inches 107 cm |
| Rollback at ground | 18° |
| Breakout force (lift) | 500 lbs 226 kg |
| Breakout force (bucket) | 600 lbs 272 kg |
| Lift to full height (at pin) | 215 lbs 97 kg |
| Bucket capacity | 0.23 cu yd 0.2 cu m |
| Bucket width | 48 inches 121 cm |
John Deere 455 Review Video
Related Post
- John Deere LX280
- John Deere 212
- John Deere 285
- John Deere 300
- John Deere 316
- John Deere 325
- John Deere 420
- John Deere 650
- John Deere 790
Conclusion
So, that’s all about John Deere 455 Garden Tractor. If you are curious about this tractor, feel free to questions all your inquiries through the comment section below. We will give our best to respond back as soon as possible. Thank you for visiting our website and stay tuned for more contents alike.
