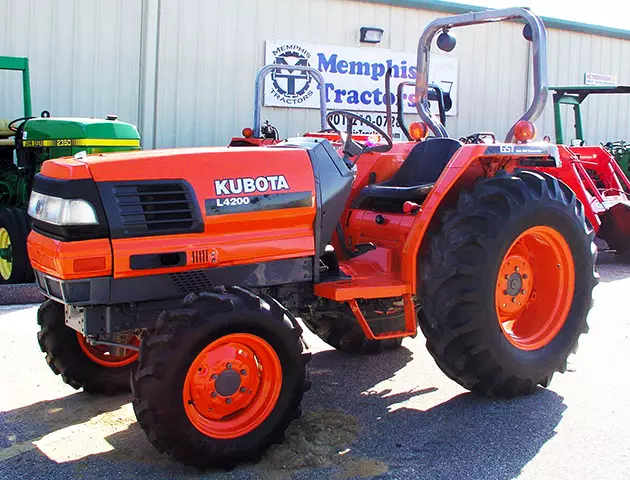

Bright orange as its trademark color, this Kubota tractor is one product that is worth knowing—despite being discontinued for more than 20 years already. Kubota L4200 Compact Utility tractor, which is included into the brand’s Grand L series, is truly grand in size.
The features are also grand—meaning your can get most benefits from this tractor. To learn about this tractor’s specification, make sure to read this article below.
First of all, let’s learn about the engine details of Kubota L4200 Compact Utility tractor. This tractor is using the self-made Kubota 4-cylinder engine and 2.2 L of displacement (134.1 ci). With an engine with these details, you can get a powerful 45.3 HP (which is equal to 33.8 kW). The engine is using diesel as its fuel of combustion.
To accommodate its users, a large-sized fuel tank is provided. The tank itself is 9.2 gallon in size, which is equal to 34.8 L. The engine is using indirect injection as its fuel system. With this system, you can get a quieter engine and this unit can go with a high-speed operation. However, compared to direct injection, this system is less effective in terms of lower fuel consumption by 10-15%.
Wondering about Kubota L4200 Compact Utility tractor mechanical aspects? First, for its chassis, you can use 4×2 2WD or 4×4 MFWD 4WD chassis type. For its steering type, you can get a hydrostatic power steering system and wet disc braking system. As for the cab, this Kubota tractor is using two-post ROPS ‘roofing’ system. The cab is optional, and it comes with heat and air-conditioning.
Regarding its transmission, Kubota L4200 Compact Utility tractor is using FST, synchronized shuttle transmission type with 8 forward and reverse transmission gears. Therefore, this tractor can help you to achieve 8 different level of speed.
What’s the maximum speed of Kubota L4200 Compact Utility tractor? It differs for each gear, and you need to shift it first in order to be able to go faster or slower. According to sources, the maximum speed for forward movement is 0.9–14.7 miles per hour (equal to 1.4 – 23.7 kmph). Additionally, for reverse movement, you can rely on this tractor to produce 0.8 – 13.5 miles per hour (1.3-21.7 kmph).
What about the attachment? For this unit, you can get a blade, a backhoe, and a front-end loader. Mid-mount mowers are not coming with a purchase of this unit.
Kubota L4200 Tractor Price
- Original Price: $12,950 (1997)
- Kubota L4200 Serial Numbers: Not Available
Related Post
- Kubota B7100
- Kubota B7800
- Kubota L185
- Kubota L3010
- Kubota ZD21
- Kubota B2710
- Kubota B7500
- Kubota L4701
- Kubota B2400
- Kubota B2920
Kubota L4200 Specification
| KUBOTA L4200 ENGINE | |
| Engine | Kubota V2203 diesel 4-cylinder liquid-cooled 134.1 ci [2.2 L] |
| Bore/Stroke | 3.4×3.6 inches [86 x 91 mm] |
| Power (gross) | 45.3 hp [33.8 kW] |
| Fuel system | indirect injection |
| Rated RPM | 2600 |
| Torque | 102.9 lb-ft [139.5 Nm] |
| Starter volts | 12 |
| Oil capacity | 6.3 qts [6.0 L] |
| Oil change | 100 h |
| Coolant capacity | 7.9 qts [7.5 L] |
| KUBOTA L4200 TRANSMISSION | |
| Transmission | FST |
| Type | synchronized shuttle |
| Gears | 8 forward and reverse |
| Clutch | dry disc |
| Oil capacity | 41.2 qts [39.0 L] |
| KUBOTA L4200 DIMENSIONS | |
| 2WD ROPS Weight | 2,875 lbs [1304 kg] |
| 4WD ROPS Weight | 3,030 lbs [1374 kg] |
| Cab Weight | 3,500 lbs [1587 kg] |
| Drawbar capacity | 1,430 lbs [648 kg] |
| 2WD Wheelbase | 71.3 inches [181 cm] |
| 4WD Wheelbase | 71.1 inches [180 cm] |
| Length | 118.9 inches [302 cm] |
| Width | 62.4 inches [158 cm] |
| Height (steering wheel) | 60.4 inches [153 cm] |
| Height (ROPS) | 84.4 inches [214 cm] |
| Ground clearance | 14.6 inches [37 cm] |
| Front tread | 45.1/49/53/56.9 inches (2WD) [114/124/134/144 cm]45.5 inches [115 cm] (4WD) |
| Rear tread | 42.5/46.4/47.2/51.2/57.1/60.8 inches [107/117/119/130/145/154 cm] |
| KUBOTA L4200 TIRES | |
| Ag front | 6.00-16:14.9-24 (2WD) |
| 8.3-16:14.9-24 (4WD) | |
| KUBOTA L4200 POWER | |
| Engine (gross) | 45.3 hp [33.8 kW] |
| Engine (net) | 42 hp [31.3 kW] |
| PTO (claimed) | 37 hp [27.6 kW] |
| Plows | 2 (14-inch) |
| KUBOTA L4200 MECHANICAL | |
| Chassis | 4×2 2WD |
| 4×4 MFWD 4WD (optional) | |
| Steering | hydrostatic power |
| Brakes | wet disc |
| Cab | Two-post ROPS. Cab optional with heat and air-conditioning. |
| KUBOTA L4200 HYDRAULICS | |
| Type | open center |
| Capacity | 10.3 gal [39.0 L] |
| Pressure | 2490 psi [171.7 bar] |
| Pump flow | 7.8 gpm [29.5 lpm] |
| KUBOTA L4200 ELECTRICAL | |
| Ground | negative |
| KUBOTA L4200 BATTERY | |
| Number | 1 |
| Cold-cranking amps | 447 |
| Volts | 12 |
| KUBOTA L4200 PTO | |
| Rear PTO | independent |
| Rear RPM | 540 (1.375) |
| Engine RPM | 540@2447 |
| KUBOTA L4200 3 POINT HITCH | |
| Rear Type | I |
| Control | position control |
| Rear lift (at ends) | 2,870 lbs [1301 kg] |
| Rear lift (at 24″/610mm) | 2,310 lbs [1047 kg] |
| KUBOTA L4200 CAPACITY | |
| Fuel | 9.2 gal [34.8 L] |
| Hydraulic system | 10.3 gal [39.0 L] |
Kubota L4200 Attachments
| BLADE | |
| Type | front-mount Kubota L2061A |
| Width | 60 inches [152 cm] |
| Lift | hydraulic |
| Angle | hydraulic |
| Type | front-mount Kubota L2072 |
| Width | 72 inches [182 cm] |
| Lift | hydraulic |
| Angle | hydraulic |
| LOADER | |
| Loader type | Kubota LA680 |
| LOADER | |
| Loader type | Kubota LA681 |
| Height (to pin) | 102.4 inches [260 cm] |
| Clearance, dumped bucket | 80.3 inches [203 cm] |
| Dump reach | 23.4 inches [59 cm] |
| Dump angle | 40 |
| Reach at ground | 66.5 inches [168 cm] |
| Rollback angle | 23 |
| Breakout force (lift) | 2557 lbs [1159 kg] |
| Lift to full height (at pin) | 1499 lbs [679 kg] |
| Bucket width | 60 inches [152 cm] |
| 66 inches [167 cm] | |
| 70.3 inches [178 cm] | |
| BACKHOE | |
| Backhoe type | Kubota BL4690 |
Kubota L4200 Review Video
Related Post
Conclusion
That’s what you need to know about Kubota L4200 Compact Utility tractor specification. As usual, if you have any questions regarding this item, feel free to ask us through the comment box below. Thank you for visiting our website and please stay tuned for more contents like this.
