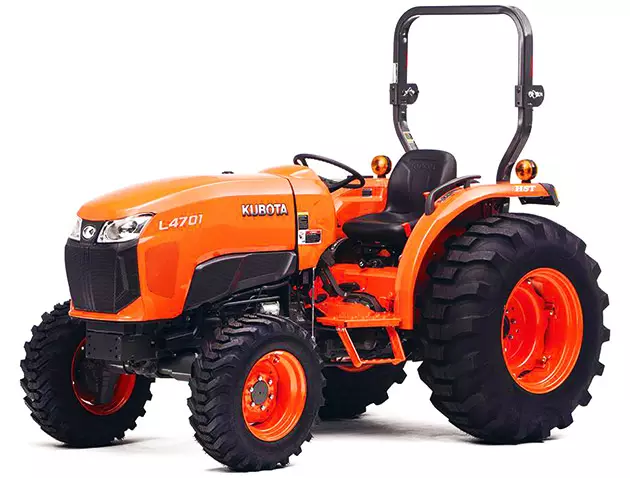

With its bright orange colors, Kubota L4701 Compact Utility Tractor’s size will ensure you that it is a sturdy unit to use to work in your garden. If you are wondering about this tractor specification, make sure to read through this article since this article will show you various aspects about the tractor—from engine, transmission, and attachments available.
First, let’s learn about Kubota L4701 Compact Utility Tractor engine. The engine type used in this series is its self-made Kubota engine with 2.4 L displacement (equal to 148.5 ci). The engine is a 4-cylinder one that works mainly with diesel as its fuel type. With its displacement and 2,600 RPM, the tractor is capable to produce strong gross power of 47.3 HP (equal to 35.3 kW).
As said earlier, the unit runs on diesel as its main fuel type. To accommodate the heavy-duty unit, you can get a huge fuel tank as well—which is 13.5 gallons, or equal to 51.1 L.
Regarding its mechanical aspects, Kubota L4701 Compact Utility Tractor is using 4×2 2WD or 4×4 MFWD 4WD as its chassis. The tractor uses hydrostatic power as its steering type. Mechanical wet disc is installed to support the tractor for its braking system.
Another point to make is its roofing system. The tractor is equipped with two-post folding ROPS (Rollover Protection System). Hence, it minimizes you from damage when the unit is rolling over.
What about its transmission? Turns out Kubota L4701 Compact Utility Tractor is using 2 types of transmissions—there are 8-speed synchronized shuttle which is capable to help the unit speed up to 14.9 miles per hour (equal to 24.0 km per hour) for forward movement and up to 14.3 miles per hour (equal to 23.0 km per hour).
Another type of transmission—which is hydrostatic transmission type—uses infinite (three-range) gears for both forward and reverse movement. The maximum speed the unit can achieve is 15.8 miles per hour (equal to 25.4 km per hour), and 14.2 miles per hour (equal to 22.8 km per hour).
The attachments you can use with Kubota L4701 Compact Utility Tractor are Kubota LA765 and Kubota BH92 backhoe. With this two attached, it may not cut grass as any other smaller tractors—but you can load dumps and move it out somewhere quickly with this tractor.
Kubota L4701 Price
- Kubota L4701 Original Price: $30,857.
- Kubota L4701 Serial Number: Not Available
Related Post
- Kubota B7100
- Kubota B7800
- Kubota L185
- Kubota L3010
- Kubota ZD21
- Kubota B2710
- Kubota B7500
- Kubota B2400
- Kubota B2920
Kubota L4701 Specification
| KUBOTA L4701 ENGINE | |
| Engine | Kubota diesel 4-cylinder liquid-cooled 148.5 ci [2.4 L] |
| Bore/Stroke | 3.43×4.03 inches [87 x 102 mm] |
| Emissions | Tier IV |
| Power (gross) | 47.3 hp [35.3 kW] |
| Fuel system | common rail direct injection |
| Rated RPM | 2600 |
| Starter | electric |
| Starter volts | 12 |
| KUBOTA L4701 CAPACITY | |
| Fuel | 13.5 gal [51.1 L] |
| KUBOTA L4701 3 POINT HITCH | |
| Rear Type | I |
| Control | position control |
| Rear lift (at ends) | 2870 lbs [1301 kg] |
| Rear lift (at 24″/610mm) | 2320 lbs [1052 kg] |
| KUBOTA L4701 POWER | |
| Engine (gross) | 47.3 hp [35.3 kW] |
| Engine (net) | 44.8 hp [33.4 kW] |
| Gear PTO (claimed) | 39.3 hp [29.3 kW] |
| Hydro PTO (claimed) | 37.8 hp [28.2 kW] |
| KUBOTA L4701 MECHANICAL | |
| Chassis | 4×2 2WD* |
| 4×4 MFWD 4WD | |
| Steering | hydrostatic power |
| Brakes | mechanical wet disc |
| Cab | Two-post folding ROPS. |
| KUBOTA L4701 TRANSMISSION | |
| Type | synchronized shuttle |
| Gears | 8 forward and reverse |
| Clutch | dry disc |
| KUBOTA L4701 HYDRAULICS | |
| Type | open center |
| Pressure | 2560 psi [176.5 bar] |
| Pump flow | 7.8 gpm [29.5 lpm] |
| Steering flow | 4.7 gpm [17.8 lpm] |
| KUBOTA L4701 PTO | |
| Rear PTO | independent |
| Clutch | hydraulic wet disc |
| Rear RPM | 540 (1.375) |
| KUBOTA L4701 DIMENSIONS | |
| 2WD Gear Weight | 3219 lbs [1460 kg] |
| 4WD Gear Weight | 3296 lbs [1495 kg] |
| 4WD Hydro Weight | 3307 lbs [1500 kg] |
| 2WD Wheelbase | 72.8 inches [184 cm] |
| 4WD Wheelbase | 72.6 inches [184 cm] |
| 2WD Length | 122.8 inches [311 cm] |
| 4WD Length | 119.5 inches [303 cm] |
| Width | 62.4 inches [158 cm] |
| Height (ROPS) | 91.7 inches [232 cm] |
| Ground clearance | 15.2 inches [38 cm] |
| Front tread | 50.4/54.3/58.3/62.2 inches (2WD) [128/137/148/157 cm]45.5 inches [115 cm] (4WD) |
| Rear tread | 46.5/47.2/51.2/57.1/60.8 inches [118/119/130/145/154 cm] |
| KUBOTA L4701 TIRES | |
| 2WD Standard tires (ag) | Front: 7.5L-15. Rear: 14.9-24 |
| 4WD Standard tires (ag) | Front: 8.3-16. Rear: 14.9-24 |
| Lawn/turf front | 27×8.50-15 |
| Lawn/turf rear | 44×18-20 |
| Industrial front | 10-16.5 (4WD) |
| Industrial rear | 17.5L-24 (4WD) |
| KUBOTA L4701 ELECTRICAL | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 40 |
| Charging volts | 12 |
| KUBOTA L4701 BATTERY | |
| Number | 1 |
| Cold-cranking amps | 600 |
| Volts | 12 |
Kubota L4701 Attachments
| LOADER | |
| Loader type | Kubota LA765 |
| Height (to pin) | 105.2 inches [267 cm] |
| Clearance, dumped bucket | 81.2 inches [206 cm] |
| Dump reach | 21.1 inches [53 cm] |
| Dump angle | 41 |
| Reach at ground | 70.2 inches [178 cm] |
| Rollback angle | 27 |
| BACKHOE | |
| Backhoe type | Kubota BH92 |
| 2-Foot flat digging depth | 106.1 inches [269 cm] |
| Reach from pivot | 149.6 inches [379 cm] |
| Loading height | 90.6 inches [230 cm] |
| Bucket Rotation | 180 |
Kubota L4701 Review Video
Related Post
Conclusion
Thinking about having Kubota L4701 Compact Utility Tractor? Commonly, the tractor is offered for sale with price around $30,000. If you have any questions, don’t hesitate to ask us about it. You can simply leave the questions in the comment box below. As usual, thank you for visiting our website and stay tuned for more beneficial contents alike.
