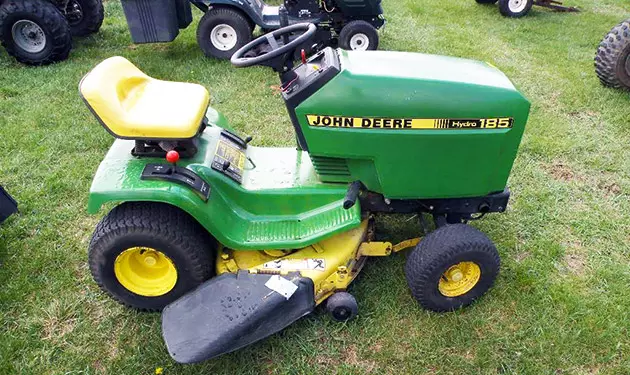

This specific John Deere tractor might have been discontinued, but some people still use this unit like a good old buddy for their various lawn work. John Deere 185 Lawn tractor was promoted for only five years, which is from 1986-1990. If you are wondering about its specification, you’re on the right page! You will find the specification of this tractor as well as its price and other related information.
Let’s start to talk about John Deere 185 Lawn tractor specification from its engine. This tractor is powered with a Kawasaki engine (FC540V type). The engine is air-cooled and works with 1-cylinder that produces 17 HP. In another measurement unit, this number is equal with 12.7 kW. The maximum power will be achieved if the engine works at rated rpm of 3,350.
Regarding its engine, the displacement of this engine is 534 cc. The main source of its combustion process is gasoline. The fuel tank provided can be fit to carry 2.2 gallons (8.3 L).
Talking about John Deere 185 Lawn tractor specification won’t be enough if we are neglecting about its transmission specification. This tractor uses Sundstrand belt-driven hydrostatic transmission type. Following that, this tractor is equipped with infinite forward and reverse gears that let the user to control their speed without any gears.
Regarding the tractor’s speed, John Deere 185 Lawn tractor can go up to 5.0 miles per hour (equal to 8.0 km per hour) for a forward movement. While for its vice versa, the gears offer maximum speed of 2.5 miles per hour (equal to 4.0 km per hour).
As for its mechanical aspect, John Deere 185 Lawn tractor has chassis of 4×2 2WD. It uses manual steering as its steering type. Integral mechanical transmission disc is used as its braking system. The tractor has an open operator station, meaning that the tractor isn’t equipped with any cab on its top.
Lastly, John Deere 185 Lawn tractor also has two kinds of attachment. The two types are 38” and 46”, both of which are mower deck that will be mounted beneath the middle part of the tractor. You can choose either to have the snowblower or blade.
So, what is the price of this tractor? Originally, the price of this tractor is starting from $3,900 for its 1990 38-inch tractor. While for the 46” one, you will need to pay $4,100.
John Deere 185 Tractor Price
- Original Price: $3,900 (1990 38-inch), $4,100 (1990 42-inch)
Related Post
- John Deere 160
- John Deere 1050
- John Deere Tractors Price List
- John Deere 1025r
- John Deere D140
- John Deere GT235
- John Deere GT275
- John Deere GX85
- John Deere L100
- John Deere LA110
John Deere 185 Tractor Serial Numbers
| 1986 | M00185A372001 (38-inch deck) |
| 1987 | M00185A440001 (38-inch deck) |
| 1988 | M00185A495001 (38-inch deck) |
| 1989 | M00185A595001 (38-inch deck) |
| 1989-end | M00185A750000 (38-inch deck) |
| 1990 | M00185A010001 (38-inch deck) |
| Final | M00185A100000 (38-inch deck) |
| 1986 | M00185B378001 (46-inch deck) |
| 1987 | M00185B450001 (46-inch deck) |
| 1988 | M00185B505001 (46-inch deck) |
| 1989 | M00185B605001 (46-inch deck) |
| 1989-end | M00185B750000 (46-inch deck) |
| 1990 | M00185B020001 (46-inch deck) |
| Final | M00185B100000 (46-inch deck) |
John Deere 185 Specification
| JOHN DEERE 185 HISTORY | |
| Manufacturer | John Deere |
| Type | Lawn tractor |
| Factory | Horicon, Wisconsin, USA |
| Original price | $3,900 (1990 38-inch ) |
| Original price | $4,100 (1990 42-inch ) |
| JOHN DEERE 185 ENGINE | |
| Engine | Kawasaki FC540V gasoline 1-cylinder air-cooled |
| Displacement | 534 cc 32.64 ci |
| Bore/Stroke | 3.50×3.38 inches 89 x 86 mm |
| Power | 17 hp 12.7 kW |
| Air cleaner | dry with foam precleaner |
| Rated RPM | 3350 |
| Starter volts | 12 |
| Oil capacity | 1.7 qts 1.6 L |
| JOHN DEERE 185 TRANSMISSION | |
| Transmission | Sundstrand |
| Type | belt-driven hydrostatic |
| Gears | infinite forward and reverse |
| Oil capacity | 0.75 qts 0.7 L |
| JOHN DEERE 185 PTO | |
| Front PTO | electric |
| JOHN DEERE 185 MECHANICAL | |
| Chassis | 4×2 2WD |
| Steering | manual sector-and-pinion |
| Brakes | integral mechanical transmission disc |
| Cab | Open operator station. |
| JOHN DEERE 185 DIMENSIONS | |
| Wheelbase | 44.7 inches 113 cm |
| Length | 66 inches 167 cm |
| Height | 39.8 inches 101 cm |
| Shiping weight | 625 lbs (38-inch deck) 283 kg |
| 645 lbs (42-inch deck) 292 kg | |
| JOHN DEERE 185 ELECTRICAL | |
| Ground | negative |
| Charging system | flywheel alternator |
| Charging amps | 15 |
| Battery CCA | 255 |
| Battery volts | 12 |
| JOHN DEERE 185 TYRES | |
| Lawn/turf front | 15×6.00-6 |
| Lawn/turf rear | 18×8.50-8 (38-inch deck) |
| 20×10.00-8 (46-inch deck) | |
John Deere 185 Attachments
| ATTACHMENT OVERVIEW |
| 38″ mid-mount mower deck |
| 46″ mid-mount mower deck |
| Snowblower |
| Blade |
John Deere 185 Tractor Review Video
Related Post
- John Deere LA115
- John Deere LA125
- John Deere LT150
- John Deere RX75
- John Deere 5055E
- John Deere 102
- John Deere 111
- John Deere 116
- John Deere 190C
Conclusion
You surely need that information regarding John Deere 185 Lawn tractor, especially about its specification and price. If you want to ask something related to the tractor, feel free to leave a comment in the comment section below. We will try to respond to your queries as soon as possible.
