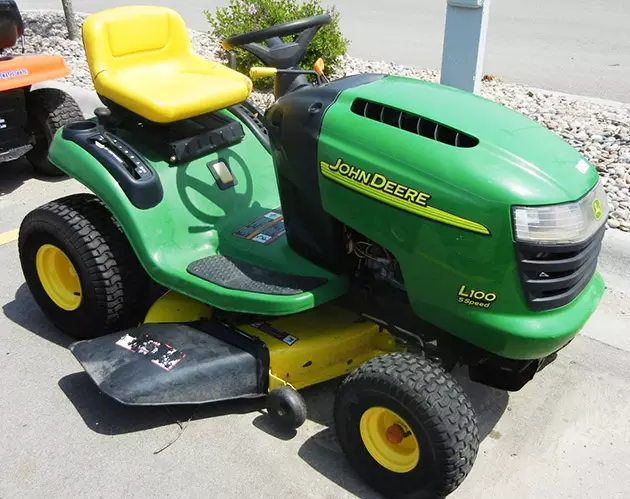

John Deere L100 Lawn Tractor – John Deere L100 Lawn Tractor is outdoor equipment that has the 31F707 engine from Briggs & Stratton. This type of engine is a 1-cylinder engine that features an air-cooled vertical shaft with a displacement capacity of around 501 cc. The specifications of this engine can deliver up to 70 hp or about 12.7 kW for the vehicle.
The engine of the John Deere L100 Lawn Tractor has a fuel tank capacity of 7.9 L. The transmission system uses the 5-speed gear while the chassis is the 4×2 2WD design. The brake system uses conventional disc brakes. The total weight of the vehicle is about 462 lbs. Due to the low vehicle weight, this type of tractor has a very good turning radius of about 18 inches. Meanwhile, the vehicle can reach a top speed of 6.4 mph when moving forward and 2.3 mph when reversing.
The owners of the John Deere L100 Lawn Tractor can get various attachments for this type of lawn equipment. The main attachment is the mower deck with a mid-mount design that is completed with a 42 inches blade. There are also various snow blowers and blade sizes that can be attached to the main part of the tractor.
Now, you will be able to learn the complete information about John Deere L100 Lawn Tractor, including the price, key specifications, available spare parts, user reviews, serial numbers, and the images of the tractor. Buyers usually need to pay attention to these aspects to understand the capability of the tractor for the type of lawn works that they want to do.
John Deere was founded in 1837 by a businessman named John Deere. Currently, the company’s headquarters are located in the state of Illinois, the United States. They serve customers around the world by providing various outdoor equipment and machinery for the sector of agriculture and forestry. In 2020, the company manages to gather more than $39 billion in gross revenue. They also manage about 69,000 employees who work for various office locations around the world.
John Deere L100 Price
- John Deere L100 Original Price: $1,499 (2005)
Related Post
- John Deere 160
- John Deere 1050
- John Deere Tractors Price List
- John Deere 1025r
- John Deere D140
- John Deere GT235
- John Deere GT275
- John Deere GX85
- John Deere LA110
John Deere L100 Serial Numbers
| 2003 | 010001 |
| 2004 | 080001 |
| 2005 | 140001 |
John Deere L100 Specification
| JOHN DEERE L100 ENGINE | |
| Engine | Briggs & Stratton 31F707 gasoline 1-cylinder air-cooled vertical shaft |
| Displacement | 501 cc 30.6 ci |
| Bore/Stroke | 3.57×3.06 inches 91 x 78 mm |
| Power | 17 hp 12.7 kW |
| Air cleaner | paper and foam |
| Starter | electric |
| Starter volts | 12 |
| Sparkplug gap | 0.030 inches 0.762 mm |
| JOHN DEERE L100 PTO | |
| Mid PTO | independent |
| Clutch | mechanical |
| JOHN DEERE L100 MECHANICAL | |
| Chassis | 4×2 2WD |
| Steering | manual |
| Brakes | disc |
| Cab | Open operator station. |
| JOHN DEERE L100 TRANSMISSION | |
| Transmission | Dana 4360 |
| Type | belt-driven gear |
| Gears | 5 forward and 1 reverse |
| Oil change | sealed unit, service not recommended |
| JOHN DEERE L100 DIMENSIONS | |
| Length | 60 inches 152 cm |
| Width | 36 inches 91 cm |
| Height | 38.6 inches 98 cm |
| Weight | 462 lbs 209 kg |
| JOHN DEERE L100 TIRES | |
| Lawn/turf front | 15.00×6-6 |
| Lawn/turf rear | 20×8.0-8 |
| JOHN DEERE L100 ELECTRICAL | |
| Ground | negative |
| Charging amps | 9 |
| Battery volts | 12 |
| Battery Group | BCI Group U1 |
John Deere L100 Attachments
| ATTACHMENT OVERVIEW |
| 42″ mid-mount mower deck |
| Snowblower |
| Blade |
John Deere L100 Review Video
Related Post
- John Deere LA115
- John Deere LA125
- John Deere LT150
- John Deere RX75
- John Deere 5055E
- John Deere 102
- John Deere 111
- John Deere 116
- John Deere 185
- John Deere 190C
Conclusion
That was all that we can say about the John Deere L100 Lawn Tractor. You can read the article from top to bottom to find out more about the key features and specifications along with reviews and the current price of this type of lawn tractor. We hope that we can solve your confusion about the vehicle and you can also leave your comment below the article.
