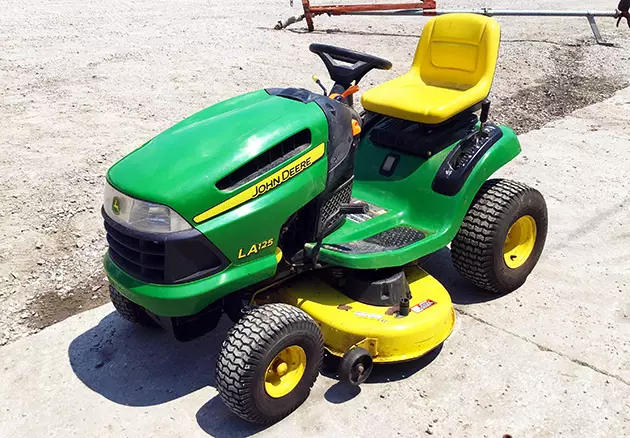

John Deere LA125 Lawn Tractor – The John Deere LA125 Lawn Tractor is outdoor equipment that features the Briggs & Stratton 33 gasoline engine. This type of engine is a 1-cylinder tractor engine with an air-cooling mechanism with a capacity of 540 cc. With those specifications, the engine can produce up to 21 hp, which is about 15.7 kW.
Speaking about the engine of John Deere LA125 Lawn Tractor, the chassis itself is a 4×2 2WD chassis. The transmission system used for the vehicle has infinite forward and reverse gears for high agility movements. The ignition system is equipped with a 12 V battery that can activate the vehicle using a key start. The oil capacity of the Briggs & Stratton engine is about 1.4 L. All in all, the powerful engine along with the vehicle weighs about 450 lbs.
Aftermarket attachments for the John Deere LA125 Lawn Tractor are available from the manufacturer. This includes the 42-inch mower deck with a mid-mount attachment system, snow blower, and various blades to support every type of lawn works that you want to do. Be informed that the main attachment for this tractor is made from 12 gauge steel which will give an additional 10 inches for the cutting ability of the mower deck blade.
Furthermore, this article will try to give you complete information about the John Deere LA125 Lawn Tractor along with the available attachments. You will also find out about the specifications and key features of this vehicle. Make sure that you also read and understand the user reviews regarding this vehicle to ensure that it has a good quality for activities that you want to do.
John Deere is a heavy equipment company that produces various construction, forestry, agriculture, and consumer automobiles products for customers around the world. In 2020, they managed to receive more than $39 billion in revenue from their operation. The main office of the company is located in Moline, Illinois. Deere & Company, the holder of the John Deere brand, is one of the biggest companies in the United States.
John Deere LA125 Price
- John Deere LA125 Original Price: $1,799 (2010)
Related Post
- John Deere 160
- John Deere 1050
- John Deere Tractors Price List
- John Deere 1025r
- John Deere D140
- John Deere GT235
- John Deere GT275
- John Deere GX85
- John Deere L100
- John Deere LA110
John Deere LA125 Serial Number
| 2008 | 050001 |
| 2009 | 200001 |
John Deere LA125 Specification
| JOHN DEERE LA125 ENGINE | |
| Engine | Briggs & Stratton 33 gasoline 1-cylinder air-cooled |
| Displacement | 540 cc 33 ci |
| Bore/Stroke | 3.70×3.06 inches 94 x 78 mm |
| Power (gross) | 21 hp 15.7 kW |
| Air cleaner | foam |
| Starter volts | 12 |
| Sparkplug gap | 0.030 inches 0.762 mm |
| Intake valve clearance | 0.004 inches 0.102 mm |
| Exhaust valve clearance | 0.006 inches 0.152 mm |
| JOHN DEERE LA125 MECHANICAL | |
| Chassis | 4×2 2WD |
| Steering | manual |
| Cab | Open operator station. Adjustable seat (10 position, 5.5-inches travel) and cup holder. Optional nylon canopy. |
| Transmission | hydrostatic |
| JOHN DEERE LA125 TRANSMISSION | |
| Transmission | Tuff Torq T40 |
| Type | belt-driven hydrostatic |
| Gears | infinite forward and reverse |
| JOHN DEERE LA125 DIMENSIONS | |
| Wheelbase | 48.9 inches 124 cm |
| Length | 68.75 inches 174 cm |
| Width | 51.75 inches 131 cm (with mower deck) |
| Height | 44.5 inches 113 cm |
| Weight | 450 lbs 204 kg |
| JOHN DEERE LA125 TIRES | |
| Lawn/turf front | 15×6.00-6 |
| Lawn/turf rear | 20×8.0-8 |
| JOHN DEERE LA125 ELECTRICAL | |
| Ground | negative |
| Charging amps | 9 |
| JOHN DEERE LA125 BATTERY | |
| Number | 1 |
| Volts | 12 |
| Group | U1 |
John Deere LA125 Attachments
| 42″ MOWER DECK | |
| Type | mid-mount John Deere 42 Edge |
| 2-blade with manual lift | |
| Cutting width | 42 inches 106 cm |
| Overall width | 52 inches 132 cm |
| Cut height | 1 to 4 inch 2 to 10 cm |
| 43.25″ SNOW BLOWER | |
| Type | front-mount John Deere 44 |
| dual-stage with manual lift | |
| Clearing width | 43.25 inches 109 cm |
| Clearing height | 18 inches 45 cm |
| BLADE | |
| Type | front-mount John Deere 46 |
| Width | 46 inches 116 cm |
| Lift height | 6 inches 15 cm |
| Lift | manual |
| Angle | manual |
John Deere LA125 Review Video
Related Post
- John Deere LA115
- John Deere LT150
- John Deere RX75
- John Deere 5055E
- John Deere 102
- John Deere 111
- John Deere 116
- John Deere 185
- John Deere 190C
Conclusion
The John Deere LA125 Lawn Tractor is a part of the 100 series lawn tractor from John Deere. This amazing lawn tractor was produced from 2008 to 2010. Make sure that you understand about this information so you can ensure that this type of lawn tractor will be suitable for activities that you want to do for your lawns and gardens.
