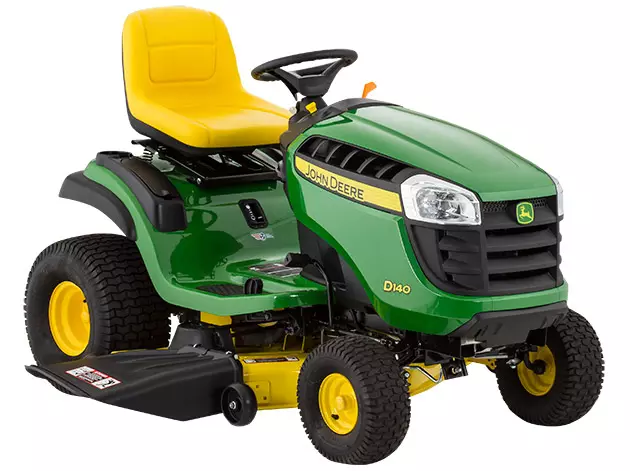

John Deere D140 Lawn Tractor – John Deere D140 Lawn Tractor is a compact size lawn tractor that features the 2WD gasoline engines from Briggs & Stratton. The engine, which is the Briggs & Stratton 40, has an air-cooled mechanism with a displacement capacity of about 655 cc. This type of engine can deliver up to 22 hp or about 16.4 kW for the tractor.
The available attachments that can be used for the John Deere D140 Lawn Tractor include the mower deck with 48 inches blade. There are also snow blowers and blades of smaller sizes. Aside from those attachments, owners of this tractor can also get a front bumper, tow-behind cart, lawn sweeper, and lawn aerator for the tractor. All the attachments are sold separately so you might need to check with local tractor dealers to find out more about the availability.
The engine that is used for the John Deere D140 Lawn Tractor is the Briggs & Stratton 655 mL engine capable of delivering 22 hp. The 2-cylinder gasoline engine features a 4×2 chassis with the 2WD mechanism. The fuel tank capacity is about 15.1 L, which brings the whole vehicle to a unit weight of about 525 lbs. The transmission system uses infinite gears for forward and reverse maneuvers.
Automatic transmission is also used for the John Deere D140 Lawn Tractor. The driver will be able to find the brake pedal on the left side of the vehicle and the accelerator/decelerator on the right side of the vehicle. The decelerator can also be used for reversing movements and provides more control on rough terrains. For comfortable driving, the lawn tractor also features a comfortable heat-resistant seat that can be adjusted using convenient controls on the seat.
This guide will also tell you complete information about the John Deere D140 Lawn Tractor. This information might be useful for you especially if you want to get this specific type of one tractor for your own needs. Regardless of whether you want to use it for professional or personal use, the lawn tractor will be capable of every type of job that you want to finish.
John Deere D140 Price
- John Deere D140 Original Price $1,999 (2011)
Related Post
- John Deere 160
- John Deere 1050
- John Deere Tractors Price List
- John Deere 1025r
- John Deere GT235
- John Deere GT275
- John Deere GX85
- John Deere L100
- John Deere LA110
John Deere D140 Specification
| JOHN DEERE D140 ENGINE | |
| Engine | Briggs & Stratton 40 gasoline 2-cylinder air-cooled |
| Displacement | 655 cc 40 ci |
| Power (gross) | 22 hp 16.4 kW |
| Air cleaner | cartridge |
| Starter | electric |
| Starter volts | 12 |
| Sparkplug gap | 0.030 inches 0.762 mm |
| Point gap | 0.010 inches 0.254 mm |
| Intake valve clearance | 0.005 inches 0.127 mm |
| Exhaust valve clearance | 0.005 inches 0.127 mm |
| JOHN DEERE D140 PTO | |
| Mid PTO | electric independent |
| JOHN DEERE D140 MECHANICAL | |
| Chassis | 4×2 2WD |
| Steering | manual |
| Brakes | mechanical shoe on transaxle |
| Cab | Open operator station. Adjustable 15-inch tall seat with 5.5-inches of travel in ten positions. Fender-mounted cup holder. Optional nylon sunshade canopy or snow enclosure. |
| JOHN DEERE D140 TRANSMISSION | |
| Transmission | Kanzaki Tuff Torq T40 |
| Type | hydrostatic |
| Gears | infinite forward and reverse |
| JOHN DEERE D140 DIMENSIONS | |
| Wheelbase | 48.9 inches 124 cm |
| Length | 68.75 inches 174 cm |
| Width | 60 inches 152 cm (mower) |
| Height | 45 inches 114 cm |
| Weight | 525 lbs 238 kg |
| JOHN DEERE D140 TIRES | |
| Lawn/turf front | 15×6.00-6 |
| Lawn/turf rear | 20×10.00-8 |
| JOHN DEERE D140 ELECTRICAL | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 9 |
John Deere D140 Attachments
| 48″ MOWER DECK | |
| Type | mid-mount John Deere Edge 48 |
| 3-blade with manual with spring assist lift | |
| Cutting width | 48 inches 121 cm |
| Overall width | 60 inches 152 cm |
| Cut height | 1 to 4 inch 2 to 10 cm |
| Cut positions | 13 |
| 43.25″ SNOW BLOWER | |
| Type | front-mount John Deere 44 |
| dual-stage | |
| Clearing width | 43.25 inches 109 cm |
| Clearing height | 18 inches 45 cm |
| Weight | 180 lbs 81 kg |
| Overall width | 44 inches 111 cm |
| BLADE | |
| Type | front-mount John Deere 46 |
| Width | 46 inches 116 cm |
| Lift height | 6.5 inches 16 cm |
| Lift | manual |
| Angle | manual |
John Deere D140 Review Video
Related Post
- John Deere LA115
- John Deere LA125
- John Deere LT150
- John Deere RX75
- John Deere 5055E
- John Deere 102
- John Deere 111
- John Deere 116
- John Deere 185
- John Deere 190C
Conclusion
That was all that we can explain about the John Deere D140 Lawn Tractor. Remember, make sure that you understand each aspect of the lawn tractor before deciding on buying the unit. If you still have questions regarding the tractor, the comment box can be used to send your queries so we might be able to solve your problems.
