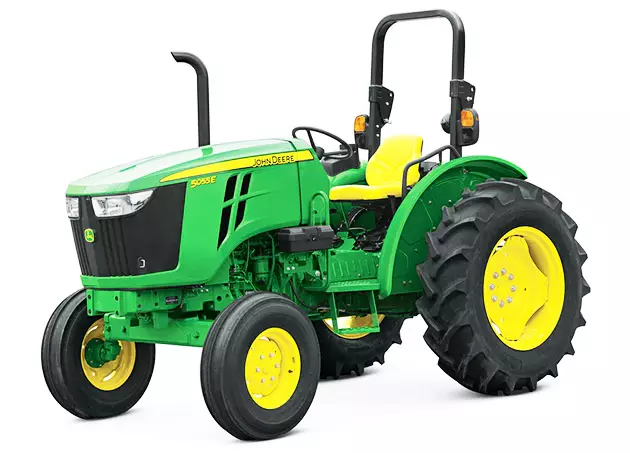

John Deere 5505E Utility Tractor – The John Deere 5505E Tractor is an outdoor equipment from John Deere that is equipped with the PowerTech 3029 turbocharged engine. The engine is a 3-cylinder design that has a total capacity of around 2.9 L. The cooling system that is being used on the engine is a liquid cooling system that will prevent overheating from the heavy operation. All in all, the engine has the capability to produce up to 55 hp.
The transmission system for the John Deere 5505E Utility Tractor uses the SyncShuttle transmission system. This mechanism employs a power transferring mechanism with 9 gears to move forward in 3 gears to reverse. The fuel tank of the engine can hold up to 18 US gallons or 68.1 L of fuel. Meanwhile, the type of fuel that can be used on the tractor is exclusive to diesel. At maximum engine rating speed, the vehicle can move up to 16.6 mph in a forward maneuver.
The John Deere 5505E Utility Tractor also has a 3-point hitch that can be used to attach various additional equipment to the tractor. The hitch can hold more than 3000 pounds safely, which will be very useful to perform any heavy-duty activities on the field. The attachments that can be used with the hitch include a wide selection of mower decks and backhoes.
John Deere is a brand name for various machinery and outdoor equipment that is used for construction, agricultural, forestry, and lawn care industries. In 2009, the company was included as one of the most valuable companies in the United States by the Fortune 500 ranking. The company is also listed on the New York Stock Exchange with the symbol DE.
John Deere 5055E Tractor Price
- John Deere 5055E Utility Tractor Price: $23,599.00
Related Post
- John Deere 160
- John Deere 1050
- John Deere Tractors Price List
- John Deere 1025r
- John Deere D140
- John Deere GT235
- John Deere GT275
- John Deere GX85
- John Deere L100
- John Deere LA110
John Deere 5055E Utility Tractor Features
| Heavy-duty MFWD front axle with limited slip | MFWD 55-degree turn angle |
| MFWD indicator light | Enhanced operator controls |
| Range selection pattern | Exhaust filter cleaning switch |
John Deere 5055E Tractor Specification
| KEY SPECS | |
| Engine description | John Deere PowerTech 3029 |
| Engine displacement | 3 cylinders: 2.9 L 179 cu in. |
| Rated engine power | At 2100 rpm: 43.9 kW 59 hp |
| Rated PTO power | At 2100 rpm: 30.5 kW 41 PTO hp |
| Transmission type | Standard: 9F/3R SyncShuttle |
| Hydraulic system type | Open Center |
| Hydraulic pump rated output | Standard: 68.6 L/min 18.2 gpm |
| Rear hitch category | Category 2; convertible to 1 |
| ENGINE SPECIFICATION | |
| Description | John Deere PowerTech 3029 |
| Aspiration | Turbocharged |
| Cylinders liners | Wet sleeved |
| Displacement | 3 cylinders: 2.9 L 179 cu in. |
| ENGINE PERFORMANCE | |
| Rated power | At 2100 rpm: 43.9 kW 59 hp |
| Max PTO power | At 2100 rpm: 30.5 kW 41 PTO hp |
| TRANSMISSION | |
| Type | Standard: 9F/3R SyncShuttle |
| Reverser | Optional |
| Clutch; wet/dry | Dry on 9F/3R SyncShuttle |
| Creeper | Optional on 9F/3R Transmission models |
| HYDRAULICS SYSTEM | |
| Type | Open Center |
| Pump rated output | Standard: 68.6 L/min 18.2 gpm |
| Available flow at a single rear SCV | 43.4 L/min 11.5 gpm |
| Joystick SCV control | 2WD: FIK MFWD: Standard |
| REAR HITCH | |
| Hitch draft control load sense type | Mechanical |
| Remote control valves available | Standard: 1 Optional: 2 |
| Hitch category | Category 2; convertible to 1 |
| Sensing type | Top link |
| REAR POWER TAKE OFF | |
| Type | Standard: Independent 540 |
| Engine rpm | 540 at 2100 rpm |
| PTO actuation | Mechanical |
| REAR AXLE | |
| Final drive type | Planetary |
| Differential controls | Mechanical |
| Axle type | Flanged |
| Brakes, type, and control | Hydraulic wet disc |
| STANDARD TIRES | |
| Front | 2WD: 7.5-16 R1 MFWD: 9.5-24 R1 |
| Rear | 2WD: 13.6-28 R1 MFWD: 14.9-28 R1 |
| Turning radius with brakes | 2WD: 3.1 m 10.1 ft |
| Turning radius without brakes | 2WD: 3.5 m 11.6 ft |
- Demo Request: www.deere.com/en/forms/demo-request/
- John Deere Dealer: dealerlocator.deere.com/servlet/country=US?productGroup=53
- Built your own John Deere 5055E Utility Tractor: configure.deere.com/cbyo/#/en_us/configure/68148141
Related Post
- John Deere LA115
- John Deere LA125
- John Deere LT150
- John Deere RX75
- John Deere 102
- John Deere 111
- John Deere 116
- John Deere 185
- John Deere 190C
Conclusion
Now that you have understood about the specifications and key features of the John Deere 5505E Utility Tractor, we hope that you can make a good decision of whether you need this tractor for your lawn and garden management business.
